Copper and graphite electrodes differ in several aspects, including their material properties, performance characteristics, and applications. The main differences are as follows:
Material Properties
Conductivity: Both copper and graphite are good conductors of electricity, but copper has a higher electrical conductivity. Copper’s conductivity allows for more efficient transmission of electrical current with lower resistance, resulting in less energy loss during operation. Graphite, while conductive, has a lower conductivity than copper.
Mechanical Properties: Copper is a relatively soft metal with good ductility and malleability. It can be easily formed and shaped into various electrode geometries. Graphite, on the other hand, is brittle and has a relatively low mechanical strength. It is more prone to breakage and requires careful handling.
Chemical Stability: Copper is susceptible to oxidation in the presence of air and moisture, which can affect its performance over time. Graphite is more chemically stable and resistant to corrosion and oxidation, making it suitable for use in harsh chemical environments.
Performance Characteristics
Melting Point: Copper has a relatively high melting point of 1083°C. However, in high-current applications, the heat generated can still cause issues if not properly cooled. Graphite has an extremely high melting point, typically above 3000°C. This allows graphite electrodes to withstand much higher temperatures without melting, making them suitable for applications involving high heat.
Electrode Wear: During electrochemical processes, copper electrodes may experience more wear and erosion due to the transfer of materials and chemical reactions. Graphite electrodes generally exhibit lower wear rates, especially in applications where high temperatures and chemical reactivity are involved.
Applications
Copper Electrodes: Due to their high conductivity and relatively low cost, copper electrodes are widely used in electrical discharge machining (EDM) for shaping and cutting metal parts with high precision. They are also used in some battery applications and in electroplating processes where high current densities are required.

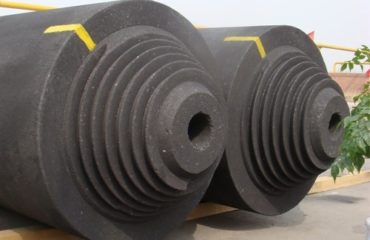

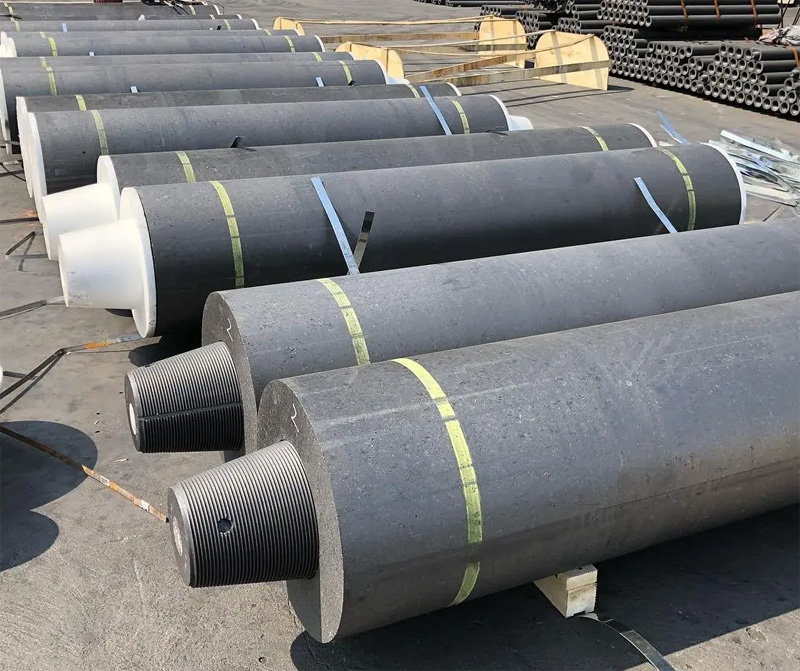

Graphite Electrodes: Graphite electrodes are commonly used in electric arc furnaces for steelmaking, where they can withstand the high temperatures and harsh chemical conditions. They are also used in electrolysis processes, such as in the production of aluminum, due to their chemical stability and ability to handle high currents at high temperatures. In addition, graphite electrodes are used in some specialized electrochemical cells and in certain types of fuel cells.
